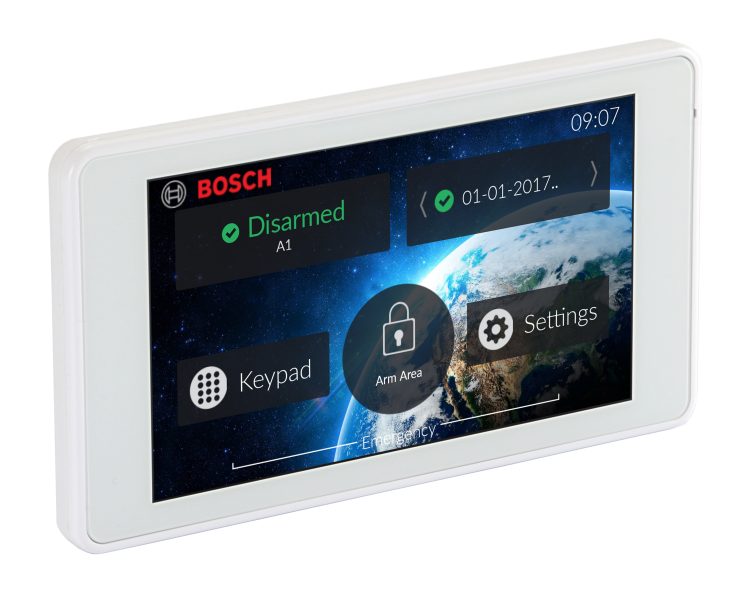

TouchOne Mini 5″

A compact, customizable touchscreen engineered for OEM integration

TouchOne Mini 5”

TouchOne Mini is a compact, reliable five-inch interface platform designed for OEMs needing a smaller footprint without compromising performance. Built on our lightweight Gen2 embedded operating system, it offers stable, long-term functionality for simple control, monitoring and app-based workflows.

The Mini shares the same refined industrial design and mounting system as the 7-inch TouchOne, making it easy to integrate into a wide range of products and enclosures. As a reference design, it can be adapted, branded or customised at the hardware, firmware or UI level to meet your exact requirements.

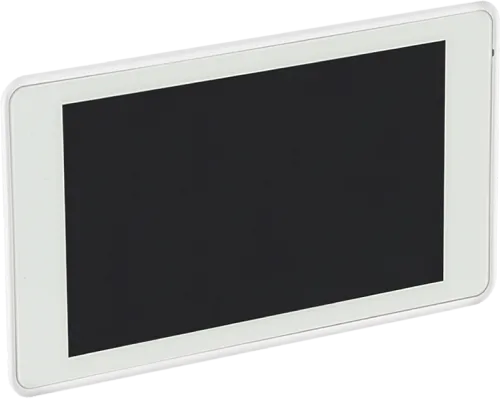

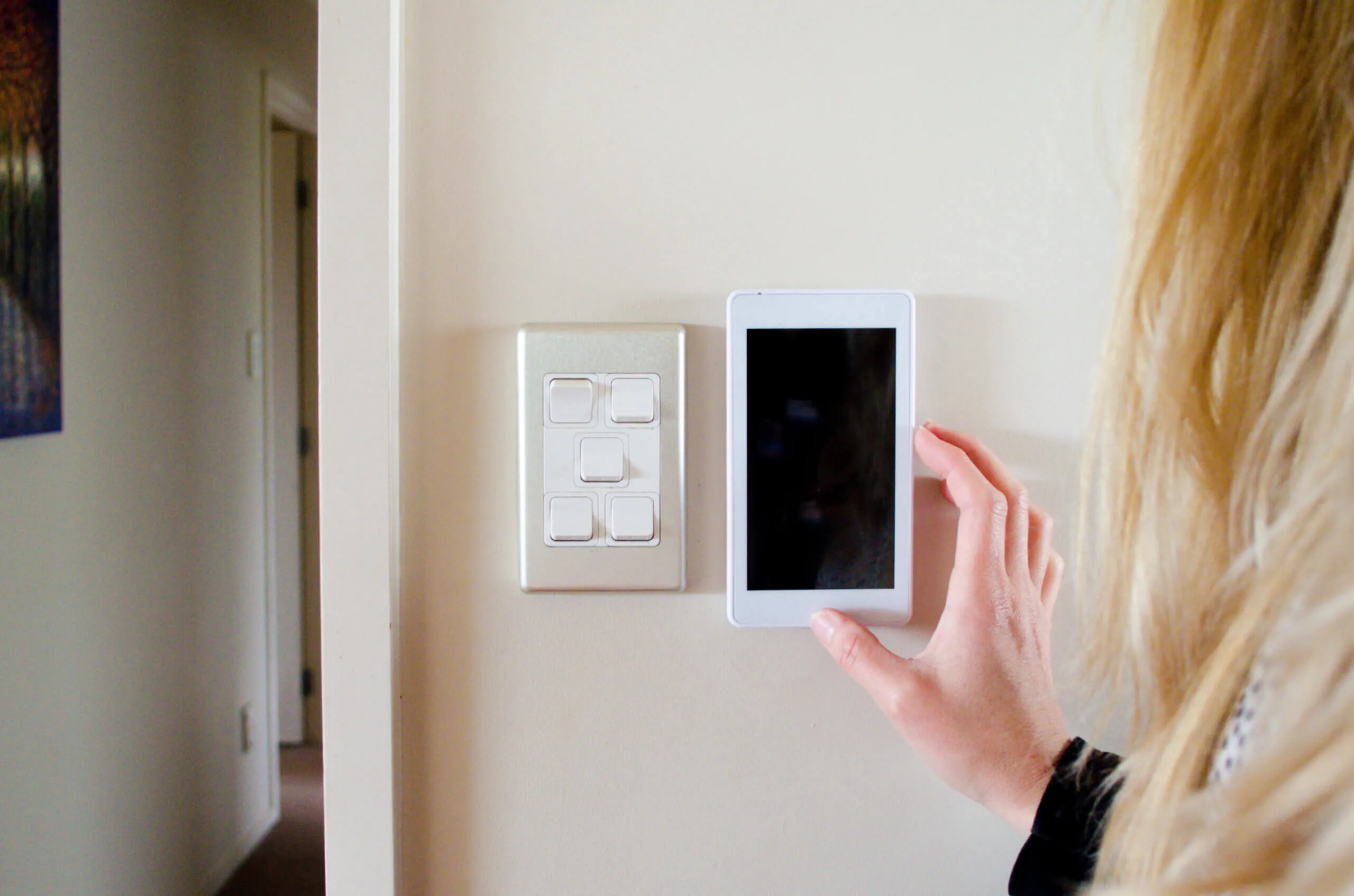

Slim Design

A slim, modern form designed to integrate seamlessly into OEM hardware.

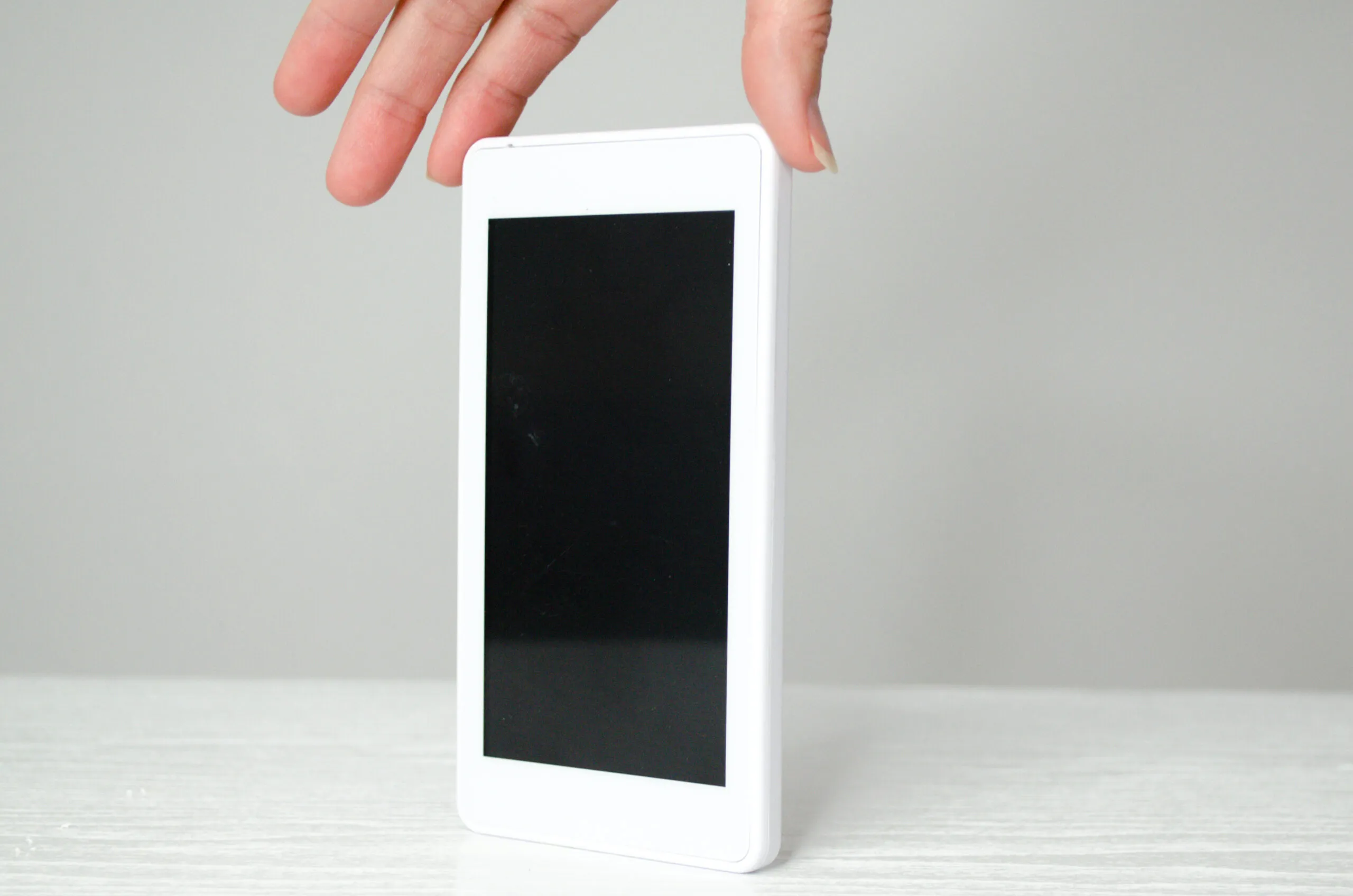

The Mini’s compact footprint makes it ideal for devices that demand both functionality and a refined interface.

TouchOne Mini 5″ Technical Specifications

Display

5” 1280x720px (HD) IPS Capacitive 5 point multi-touch

Under-the-hood

1.2GHz Quad-Core ARM Cortex-A7
Mali400 MP2 with OpenGL ES 2.0
1GB of memory / 8GB of storage

Software

8OS Embedded Android 5.1
8OS Locked Launcher

Peripherals

8Ω 1W Speaker
Electric Condenser Microphone
Gravity and accelerometer sensor

Connectivity

WiFi 802.11b/g/n 2.4GHz
Bluetooth 3.0 + LE
MicroSD Card
USB Type-C
Custom interfaces available

Power

12VDC input 300mA avg (600mA peak)

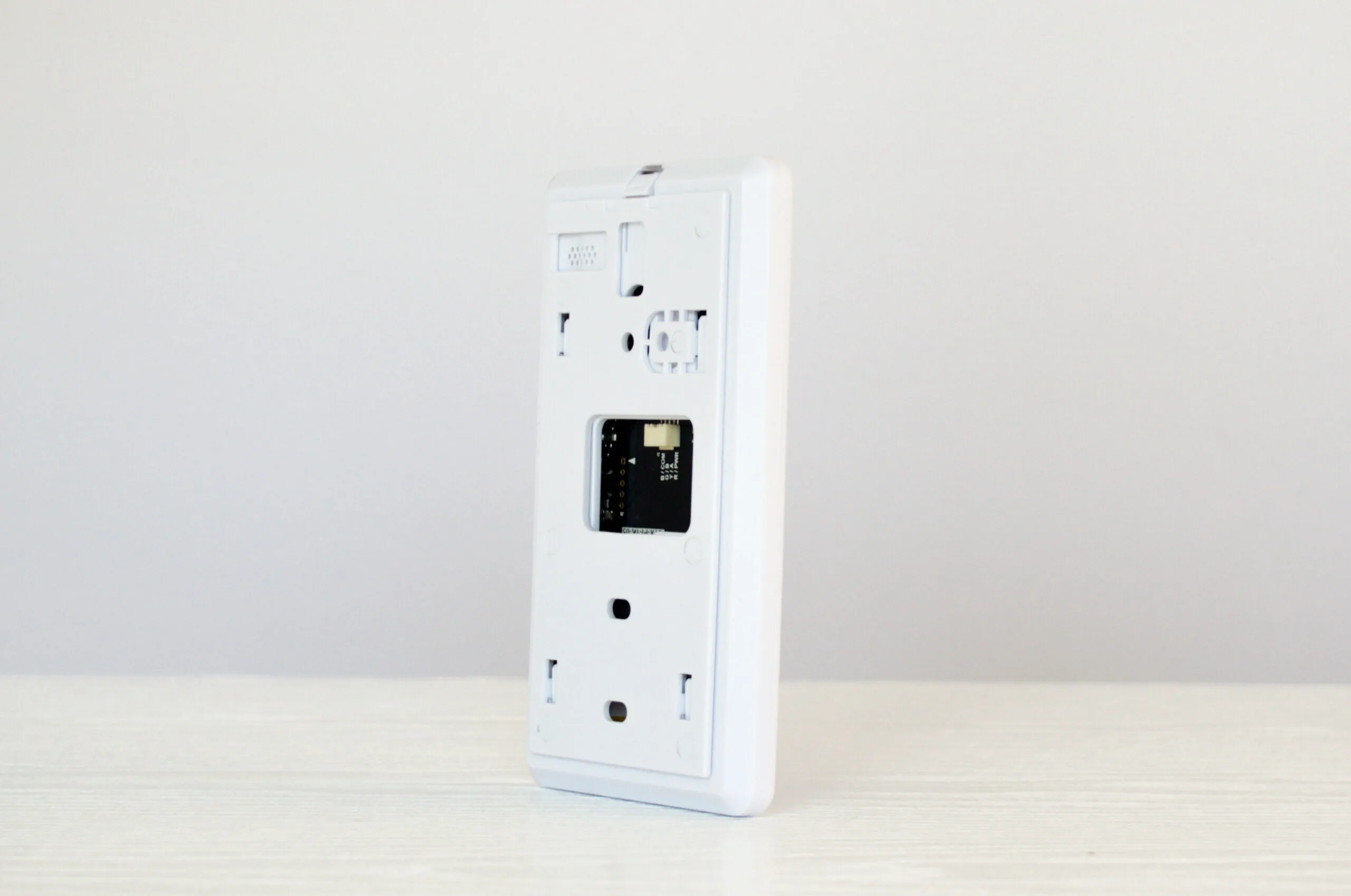

Mounting Options

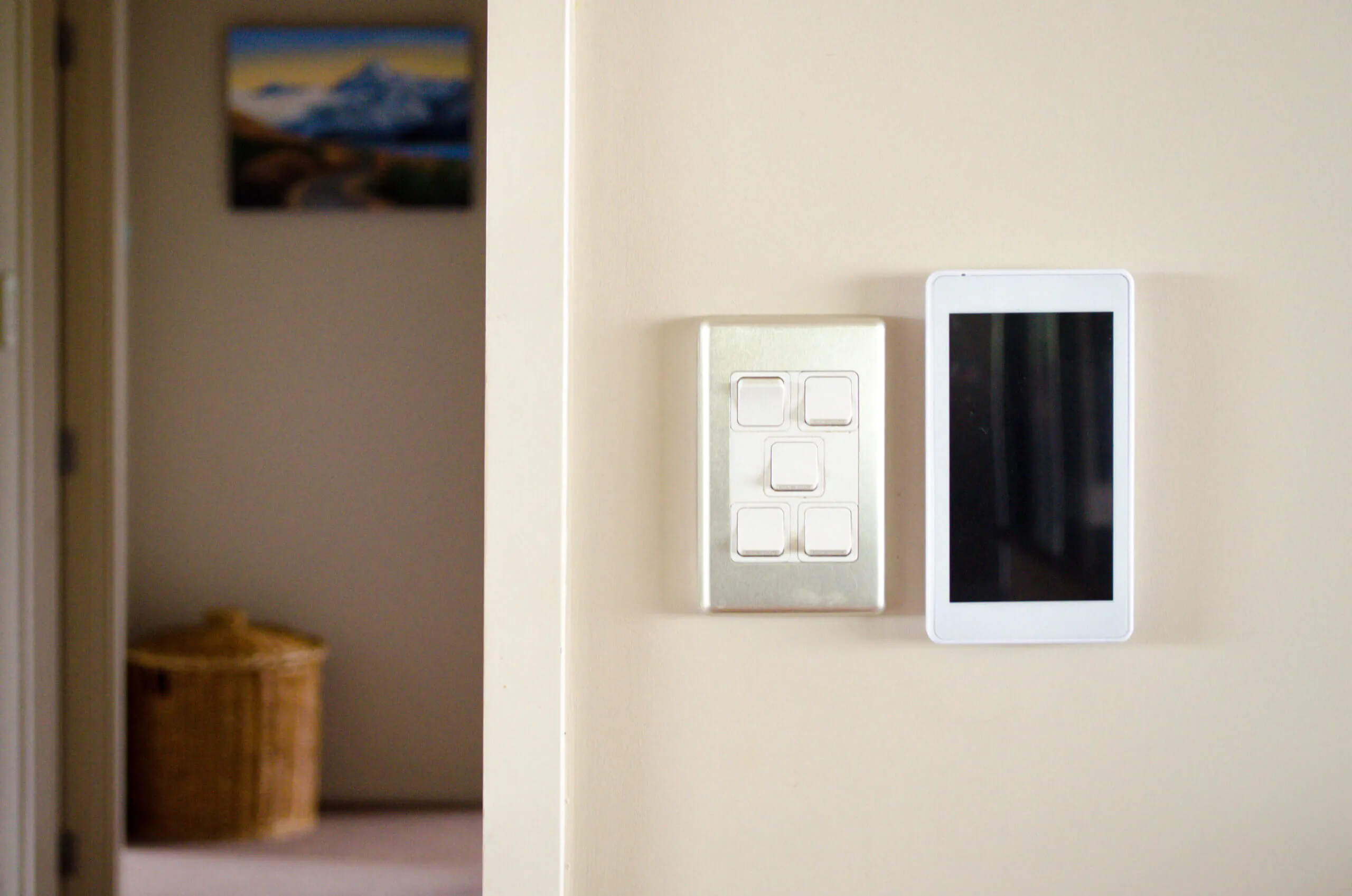

Wall Bracket
Desk Stand optional
Remove from wall/desk detection
